WHOLESALE  ONLY

ACCESSORIES

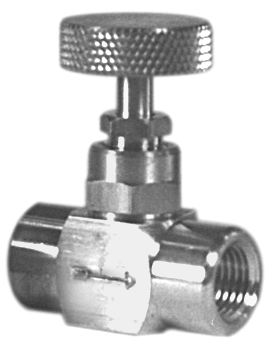

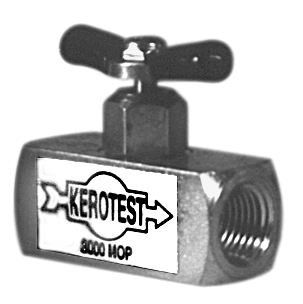

Brass Needle Valve 3 Way Brass Valve Steel Needle Valve Ball Valve
Brass Needle Valve 3-Way Brass Valve Steel Needle Valve Ball Valve
Needle for flow control & shut off. Ball for on/off. 3 way for fire speinkler gauge. Others available.

VALVES
Type Matierial Temp
WOG° F
PSI Detail
Needle Brass 150° 600 More
Carbon Steel
250° 3000
5000
Ball Brass 150° 600
Stainless 165° 800
Three Way Brass 150° 200


Siphon A siphon installed between the gauge and the live steam line allowsthe hot medium to cool before it reaches the gauge. Other variations and sizes are available.

SIPHONS
Dia. MxM Angle Steel Stainless Steel Brass Detail
¼"
90°
180°
Std.
Sch. 40

Std.
EH 80
Std.
Type 304
Sch. 40

Std.
Type 316
Sch. 40
Std.
Sch. 40
More
½"
90°
180°
Std.
Sch. 40

Std.
EH 80
Std.
Type 304
Sch. 40

Std.
Type 316
Sch. 40
Std.
Sch. 40


Rubber Gauge Covers
Rubber Cover Rubber Cover Rubber Cover Helps protect the gauge from accidental damage. The 2" cover is slightly oversized on some gauges.
RUBBER GAUGE COVERS
Socket
Dia Style CB LM Detail
1½" Closed     More
2" Closed
2½" Open

Pressure Snubbers
Snubbers Snubbers reduce and/or eliminate pulsations which can damage gauges & delicate machinery and be the cause of faulty readings.
PRESSURE SNUBBERS
Dia Model Material PSI Detail
¼" Economy* Brass 1,500 More
1/8" Porous** Brass 3,000
¼" Porous** Brass 5,000
½" Porous** Brass 5,000
¼" Porous** S/S 10,000
½" Porous** S/S 10,000
¼" Piston*** Brass 3,000
¼" Piston*** S/S 5,000
* Porous - Universal for most media
** Specify Media: G-Air/Gasses; E-Water; D-Oil
*** Piston Subbers supplied with 3 pistons for most media

P/T PLUGS FOR PRESSURE OR TEMPERATURE
P/T Plugs A gauge mounted on an adapter can provide a simple, inexpensive and reliable solution where permanently installed gauges are subject to damage making them too costly to replace often. Insertion of up to 1/8" adapter with gauge or thermometer through self sealing Neoprene core in brass plug provides an instant reading. Vacuum to 1000 psi or up to 350&degF.
P/T PLUGS
Size Material Temperature °F Detail
  Plug/ Seal
¼" Brass/ Neophrene 200° More
½" Brass/ Neophrene 200°
* Porous - Universal for most media
*1/8" & 3/8" plugs available on special order.
**Stainless Steel plugs, Nordeal seals available on special order.
