SPECIAL PURPOSE
GAUGES & ASSEMBLIES

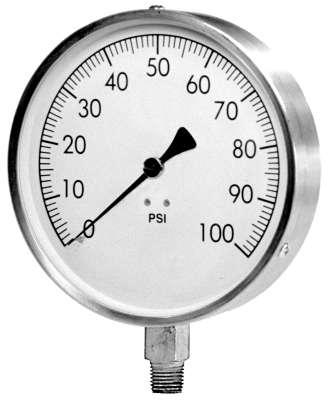

CONTRACTOR GAUGE
These General purpose dry gauges are popular in the HVAC & plumbing
trades, or for anyone using media compatible with brass/bronze. Siphon
& valve are suggested for use with steam. Stainless steel case and
lens ring. Brass/bronze internal working parts and ¼" lower
mount socket. ANSI accuracy Grade A [2-1-2%]. Pointer is adjustable.
Series SB-Dry, Stainless Case, Brass
Internals |
Dia |
Case |
Int |
Ranges |
Detail |
4½" |
SS |
BR |
15, 30, 60, 100, 160,
200, 300, 400, & 600 psi, V & C
|
More
|
SLUMP GAUGE
This glycerin filled 4" gauge was designed for use on concrete
ready-mix trucks. It has lower socket with special rear mounting studs.
"L" clamps & wing nuts. Increments & numbers over 4500 psi
& message "Do Not Exceed 5000 PSI" printed in red. Set pointers to
be available shortly as extra cost option.
Series PGB404QLM-S Slump
Gauge
|
Dia |
Socket |
PSI |
Case |
Internals Socket |
Detail |
4" |
¼" |
5000 |
Stainless Steel |
Brass/Bronze |
More
|

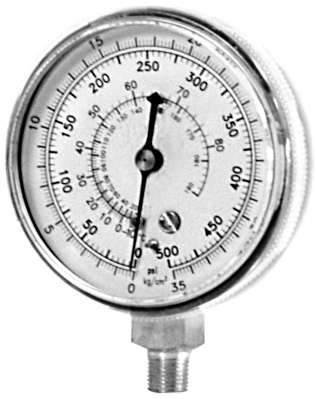

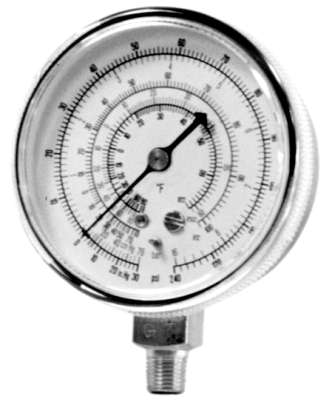

REFRIGERATION GAUGES
For R-12 (Old) or R-134 (New)
Refrigerants.
ABS plastic cases with internal parts and 1/8" socket of brass/bronze.
twist on/off poly lens allows easy recalibration. Low range has retard
to 300 psi. R-12 & R-134 models are not interchangeable and must be
used with the appropriate refrigerant.
Series RNB-Dry Plastic Case, Brass
Internals
|
Dia |
Case |
Type |
Range |
Specify Refrigerant |
Detail |
2½" |
RED |
High |
0 - 500 psi |
R-12/R-134 |
More
|
2½" |
BLUE |
Low |
30-0-120/300 psi |
R-12/R-134 |
More
|

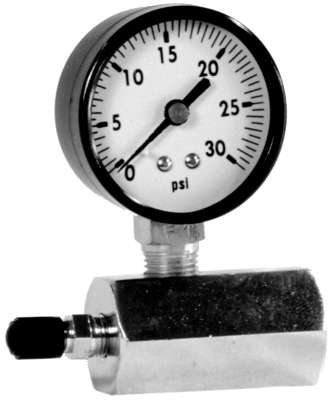

GAS TEST GAUGE ASSEMBLIES &
COMPONENTS
Series GT-Dry,
Steel Case, Brass Internals
|
More
|
15 psi |
Available |
30, 60 or 100 psi range, assembly |
Available |
Manifold block only |
Available |
Air valve & Cap |
Available |
AMMONIA GAUGES
Gauges have steel internal movement, socket and case for use with
anhydrous ammonia, nitrogen and other liquid fertilizers or ammonia
based chemicals. Accuracy meets ANSI Standard B40.1. Socket
¼".
Series AI-Dry,
Steel Case & Internals |
Application |
Dia |
Range |
Model |
Detail |
Agriculture |
2½" |
60, 150 or 400 psi |
PAI |
More
|
Industrial |
2½" |
30-0-160 or 30-0-300 |
CAI |
More
|
Industrial |
3½" |
30-0-160 or 30-0-300 |
CAI |
More
|
WATER TEST GAUGE
ASSEMBLY
Top mount 2½" gauge with hose
connection. Available with max pointer.
Series WT-Dry,
Plastic Case, Brass Internals |
Dia |
Psi |
Max Pointer |
Detail |
2½" |
300 |
No |
More
|
2½" |
300 |
Yes |
More
|
Swivel connection ¾" x
¼" FPT, available |
Monel mini filter, available |
2½" DIAPHRAM
GAUGES
For low pressure use as conventional gauges are not accurate below 10
PSI. Models have black steel case & can be adjusted under
pressure. Meets ANSI code B40.1 with 3-3-3% accuracy.
Series DB-Dry,
Steel Case, Brass Internals |
Ranges Available |
Specifications |
Single Scale |
Dual Scale |
Water Column |
Low PSI |
10 Oz* |
20 Oz/35" |
15"WC |
3* |
15 Oz* |
35 Oz/60" |
30"WC |
5 |
30 Oz* |
60 Oz/100" |
60"WC |
10 |
60 Oz* |
|
100"WC |
|
100 Oz* |
|
200"WC |
|
|
|
300"WC |
|
|
Model |
Dia |
NPT |
Standard |
2½" |
¼"LM |
Pressure** Recalibrator |
2½" 2½" |
¼"LM ¼"CB |
Vacuum** Recalibrator |
2½"
|
¼"LM ¼"CB |
|
NOTE: " indicates inches of water column.
* Recalibrator models only. ** Available either Pressure or
* Vacuum.
Vacuum models are Recalibrator type only - secondary stock call
for availability/delivery.
|
TON GAUGES
Ton gauges are available standard in a 4" stainless steel case with ¼"
lower mount connection either liquid filled or dry, 1% full scale
accuracy. Optional cases (Phenolic Process Gauge case) and fittings
available. Most ranges available, ram size and tonnage needs required.
All ton gauges special order, allow 3 days for manufacturing.
CUSTOM TON GAUGES
Made to your specifications - Just call with the tons or psi and the
overall ram size. delivery? Usually 1 - 2 days.
TON GAUGES (Stock Press Models) |
Dia |
Socket Top Mount |
Pressure Tons Force |
Ram O/D |
Case |
Internals |
Net Price |
Detail |
4" |
1/3" |
40/50/60 |
3"/ 3 1/2"
/4" |
Chrome Steel |
Brass |
$14.55 |
More
|
4" |
1/4" |
55 |
3 1/2" |
Chrome Steel |
Brass |
$14.55 |
GAS TEST KIT
For testing LP or natural gas systems. Kit includes special carrying
case with foam liner to protect gauge from rough handling. 3' hose with
adapter and recalibratable 20 oz./35" H20 diaphragm gauge. Other
standard range diaphragm gauges may be substituted at no extra
charge.
GAS TEST
KIT |
Complete With Case |
Available |
Detail |
Without Case |
Available |
More
|
|
