TEMPERATURE INSTRUMENTS

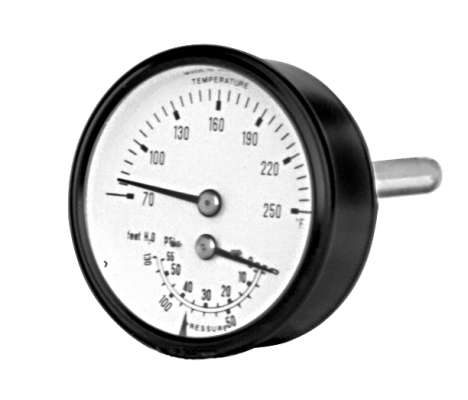

Tridicator/Boiler Gauges (Specifications)
Series TMB gauge Series Gauge Diagram With 15 models of tridicators in stock, we have more than almost anyone else! All have pressure and temperature scales. Most round gauges have an adjustable set pointer and acrylic lens. Square gauges have a glass lens. 		Series Gauge Diagram
SERIES TMB BOILER GAUGES
  Stem Length Pressure
Dia So. Case OL SH Probe PSI Ft. H20 Temperature Detail
2½" ¼" Round 1.75" 0.8" 0.95" 75 170 70°-320°F More
2½" ¼" Round 2.95" 2.0" 0.95" 75 170 70°-320°F
2½" ¼" Round 3.00" 0.8" 2.20" 200 0-460' 70°-250°F
2½" ¼" Round 3.63" 2.0" 1.63" 75 0-170 70°-320°F
2½" ¼" Round 3.63" 2.0" 1.63" 200 0-460' 70°-320°F
3¼" ½" Round 3.00" 1.0" 2.00" 200 0-170 70°-320°F More
3½" ½" Round 3.56" 1.02" 2.54" 75 ---
 60°-260°F
3½" ½" Round 3.56" 1.02" 2.54" 200 ---
 80°-320°F
3½" ½" Square 3.41" 1.41" 2.00" 75 ---
 60°-260°F
3½" ½" Square 3.41" 1.41" 2.00" 200 ---
 80°-320°F
*also available with 75 PSI (170' H20) & 100 PSI (200' H20)
OL=Overall Length So=Socket Rd=Round Sq=Square


Thermometers (Specifications)
Models shown are stock items; a full range of thermometers & thermowells is available on special order.
Series TB 1 gauge"
Pocket BI-Metal Thermometers
Dia Range F° Dual Scale F°/C° Stem Fitting Case Lens Detail
1.0" -40°+160°F/0° + 220°F/ +50° + 500°F 5.0" None S/S PL More
1.3" -40°+160°F/0° + 220°F/ + 50° + 500°F 5.0" None S/S PL

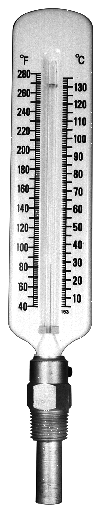

Hot Water Thermometer Hot Water Thermometer
Hot Water Thermometers
Size
 Model
 Range
 Stem
 Case
 Lens
 Fitting & Stem
 Detail
5" Tall
 TTD-5
 -40° +280°F/+5° +135°C
 2"
 ST
 GL
 ½" Straight ½" Angle
 More
2 ½" Dia
 TBD25"
 Dual scale Bi-metal +40° +240°F/+5° +135°C
 1.6"
 AL
 PL
 ½" - R
 More
*Price includes thermowell **ST=Steel AL=Aluminum

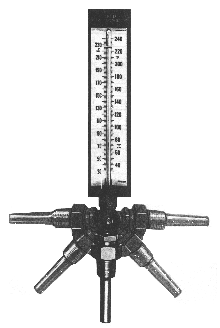

All Angle Thermometer
SERIES TTF MERCURY ALL ANGLE THERMOMETERS
Scale
Length
 Range
 Stem
 Fitting
 Case*
 Lens
 Detail
9"
 0° + 110°F, 0° + 120°F, 0° + 160°F, +20° + 180°F, + 30° + 240°F, + 30° + 300°F + 50° + 400°F
 3 ½"
 ½"
All Angle
 Cycolac
 GL
 More
*Aluminum case for ranges over 400°F available at extra cost.

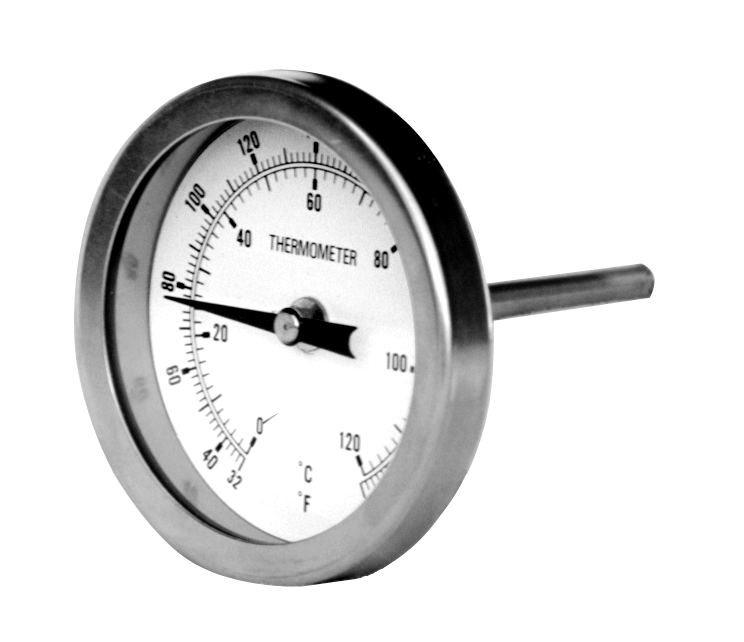

Series TB
COMMERCIAL / INDUSTRIAL BI-METAL THERMOMETERS
Dia.
 Ranges*
 Stem
 Fitting
 Case
 Lens
 Detail
3.0"
 0° + 250°F& -20° + 120°C/+ 50° + 550°F & +10° + 250°C 2 ½"
 ½"
Rear
 S/S
 GL
 More
3.0"
 0° + 250°F& -20° + 120°C/+ 50° + 550°F & +10° + 250°C/ + 200° + 1000°F& + 100°-500°C 4"
6"
9"
 ½"
Rear
 S/S
 GL
3.0"
 0° + 250°F& -20° + 120°C/+ 50° + 550°F & +10° + 250°C 12"
 ½"
Rear
 S/S
 GL
5.0"
 0° + 250°F& -20° + 120°C/+ 50° + 550°F & +10° + 250°C 2½"
4"
6"
 ½"
All Angle
 S/S
 GL
 More
#316 Stainless Available
*Other ranges available from stock at our Eastern Warehouse: -40/160°F 0/150°F +20/240°F +50/300°F; +50/400°F + 150/750°F +25/125°F; 0/200°F 0/300°F +50/550°F +200/1000°F (All dual range °F and °C in 22½, 4", 6", 9" and 12" stems).
*S/S=stainless Steel R=rear L=Lower GL=Glass PL=Plastic

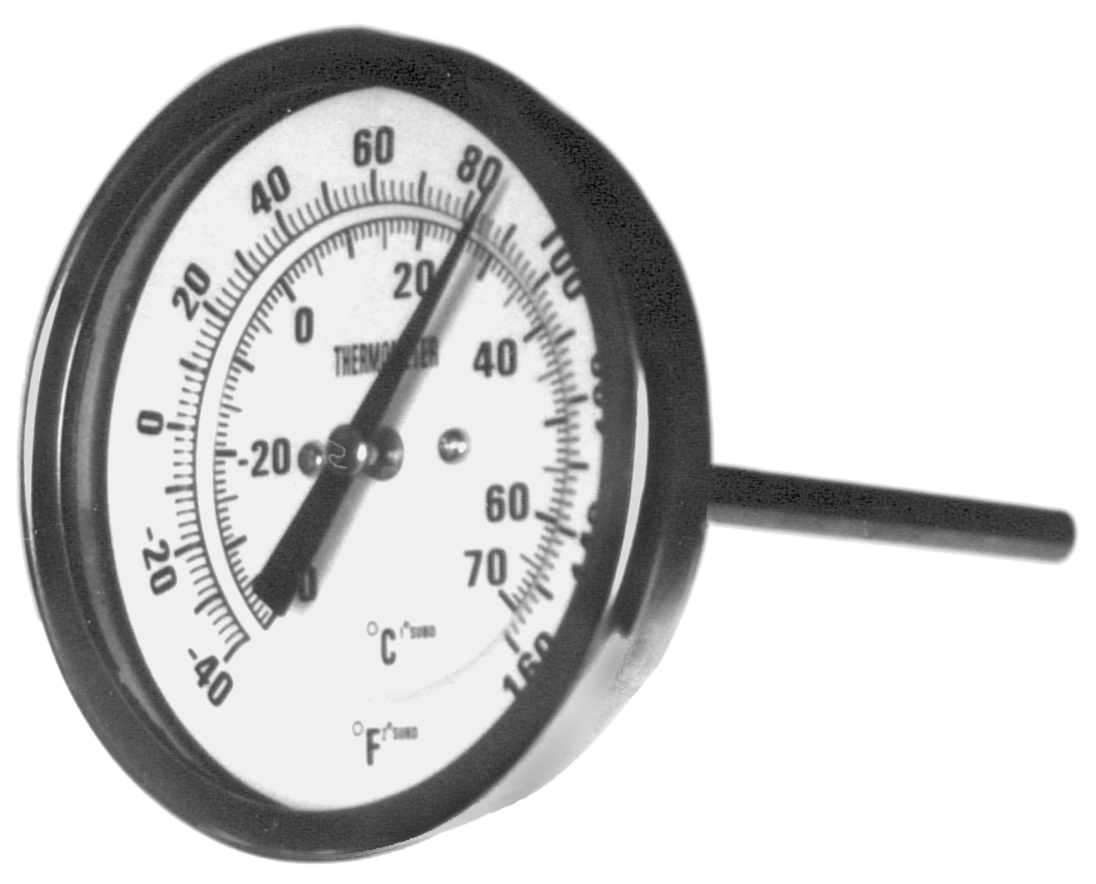

Propane gauge
PROPANE (BOBTAIL) BI-METAL THERMOMETERS
Dia. Range Stem Fitting Case Lens
2" -40° + 160°F 4" & 6" ½" - R S/S GL
3" -40° + 160°F 4" & 6" ½" - R S/S GL

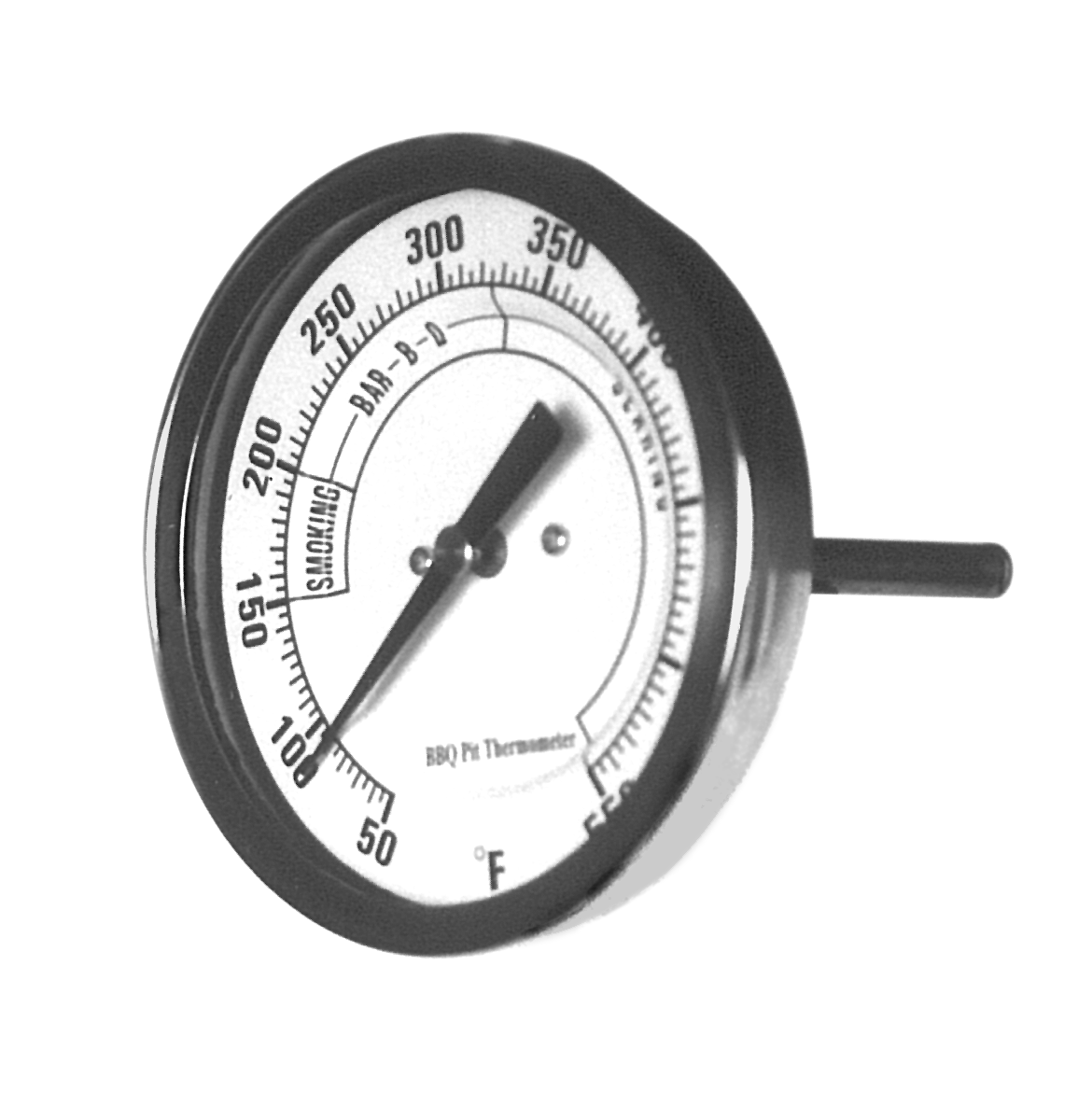

Bar-b-que gauge
BAR-B-QUE BI-METAL THERMOMETERS
Dia. Range Stem Fitting Case Lens Detail
3" 0° + 550°F (Smoking 150°-200° Bar-b-que 200°-325° & Searing Zones 325°-550°) 2 ½" ½" - R S/S GL More


Surface Mount Surface Mount
SERIES TBF DUAL MAGNET SURFACE MOUNT BI-METAL THERMOMETERS
Dia. Range Detail
2" 100° + 160°F ,0° + 150°F, 0° + 250°F, 0° +500°F & +50° + 750°F More



Our industrial gauges can function as instrumentation for pressure regulators, testing, control, monitoring, pressure and temperature measurement. Reptech's wholesale gauges are used in many commercial and industrial applications including farming, marine, chemical, medical, HVAC, refrigeration, hydraulic, pneumatic, steam and scientific areas.

Our prices are available on request. We carry the following products: Liquid Filled Gauges, Process Gauge, Dry utilty gauge, Special Purpose Gauge, Slump gauge, Contractor gauge, Thermometer Gauge, Tridicator Gauge, Boiler gauge, Surface Mount Gauge Refrigeration Gauge, Ammonia Gauge, Gas Test Gauge, Water Test Gauge, Ton Gauge, Diaphram Gauges, Snubbers, Valves, Rubber Gauge Covers, Siphons and more.
