WHOLESALE  ONLY

DRY UTILITY GAUGES

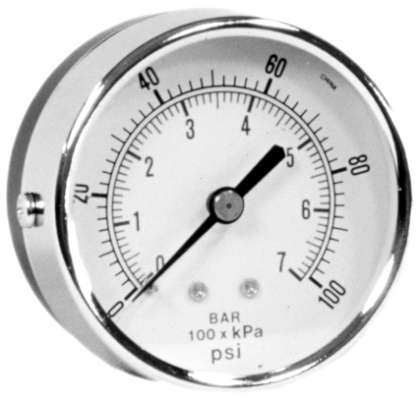

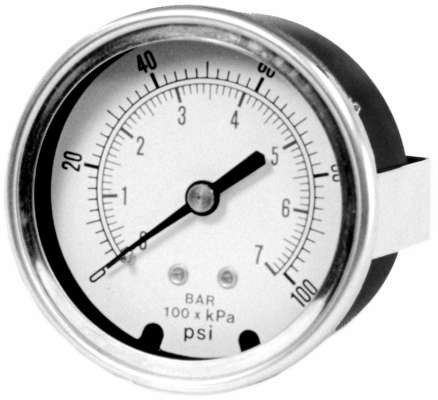

Dry utility gauge For general service applications using air, water, oil & other media not corrosive to brass or bronze. Brass/bronze tube, movement & connection. Dial is white with numbers in PS/Bar.
Dry utility gauge PMB series have black enameled drawn steel case with chrome or black lens ring and acrylic lens; meets ANSI accuracy standard B40.1 [3-2-3%].
Dry utility gauge In steam systems, a siphon should be installed between the gauge and the steam line. Gauge appearance may vary but your satisfaction is guaranteed.
SERIES MB/NB*-DRY STEEL/PLASTIC* CASE, BRASS INTERNALS
Dia Pressure Range LM CB PM Detail
1" 60, 100, 160psi No Yes No More
1" 30, 60, 100, 160, 200, & 300psi
15 psi, Vacuum & Compound
Yes
Yes
Yes
Yes
Yes
Yes
More
2" 30, 60, 100, 160, & 300psi (plastic case)
30, 60, 100, 160, 200, & 300psi (" only)
15, 400, 600, & 800 psi V&C (1/4" & 1/8")
1000, 1500, 2000, 3000, & 5000psi (" only)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
No
Yes
Yes
No
More
2" 30, 60, 100, 160, 200, & 300psi
15, 400, & 600psi, Vacuum & Compound
1000, 1500, 2000, 3000, 4000, & 5000psi
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
More
3" 30, 60, 100, 160, 200, & 300psi
15, 400, & 600psi, V & C
800, 1000, 2000 & 3000psi
Yes
Yes
Yes
No
No
No
Yes
Yes
No
More
4" 30, 60, 100, 160, 200, & 300psi
15, 400 & 600psi, Vacuum & Compound
1000, 1500, 2000, 3000 & 5000psi
Yes
Yes
Yes
Discontinued.
Limited to
Stock on hand



More
4" 30, 60, 100, 200 & 300psi
15, 400 & 600psi, Vacuum
Yes
Yes
No
No
No
No
More
6" 60, 100, 160, 200 & 300psi
15, 30, 400 & 600psi, Vacuum
Yes
Yes
No
No
No
No
More
8" 60, 100, 160, 200 & 300 psi
15, 30, 400 & 600 psi, Vacuum
Yes
Yes
No
No
No
No
More
NOTES: 2" & 2" LM are available with 1/10psi increments by request.
Standard connection on 1" and 1 " gauges is 1/8" NPT, 2" through 4 " gauges have 1/4" NPT connections standard. Non standard connections for most models available at extra charge.
Plastic 1" & 2" gauges have single scale PSI only dials  * Plastic cases may be available. Maximum Pointer (drag pointer, lazy hand, teltale, max set) with glass lens for 2" gauge available at axtra charge.


SERIES PBB - DRY "BRASS" CASE
Dry utility gauge
Heavily brass plated steel gauge case provides appearance and durability of all brass gauges, but at a much lower cost. Popular in the natural gas and propane markets.
SERIES PBB - DRY BRASS PLATED STEEL
Dia Pressure Range Detail
2" 30, 60, 100, 160, 200, 300 & 400psi More
2 " 30, 60, 100, 160, 200, 300 & 400psi More
